High Quality Fuel Dispenser Bennett type Flowmeter for Gas Station in Fuel Dispenser
High Quality Fuel Dispenser Bennett type Flowmeter for Gas Station in Fuel Dispenser
| Unit Price: | 60~75 USD |
|---|---|
| Min. Order: | 2 Set/Sets |
| Packaging: | Each flow meter with bubble bag, 2 sets in a carton, then with tray. |
|---|---|
| Supply Ability: | 2000 Set/Sets per Month |
| Port: | Shanghai or Ningbo |
Product Description

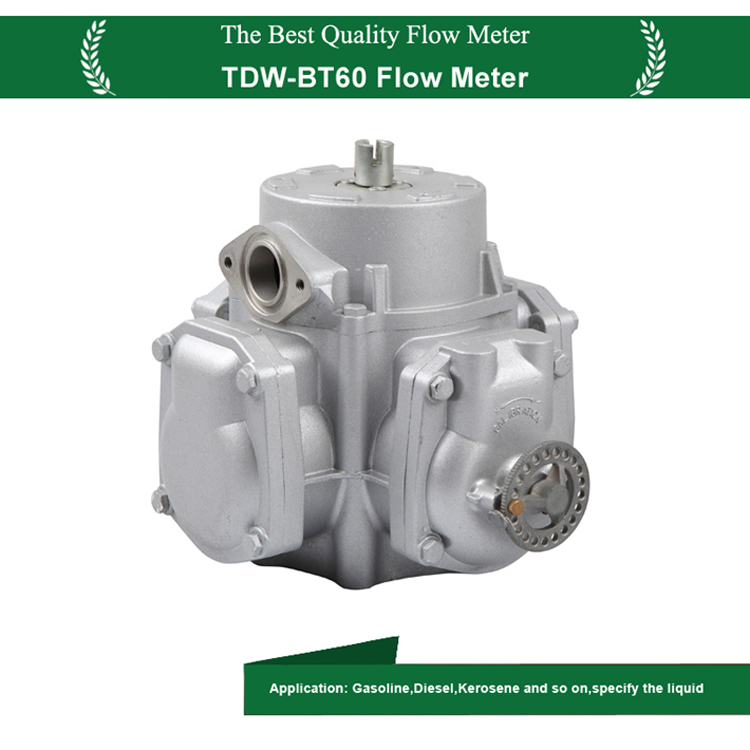

TDW-BT60 High Quality Fuel Dispenser Bennett Shape Flowmeter for Gas Station Product Description Specification The function of Flow meter is to record the volume of oil liquid flowed out. For a Flow Meter, the measurement accuracy is regarded as its most important feature. The metal piston & leather cup piston flow Meter are the two most common types of flow meter. Whenever a certain amount of liquid passed, it will cause a angular deviation to the flow meter transmission shaft, and then the pulse generating gadget will give out a certain pulse signal to indicate the volume. Features and Benefits:
1. The plunger seal that is positioned with the cup toward the fluid, this provides longer life and eliminates "blow-by" for superior overall performance and accuracy
2. Using bushing to replace bearings provide longer life time and high precision
3. The meter uses a direct drive to the pulser which is equipped with an adjustable timeout feature for fuel theft prevention
4. 100% Factory tested to ensure absolute "leak proof" quality.
Details
Company Information
FAQ 1- Could you develop our own design? Yes
2- Are you Factory ? Yes
3- Can we visit your factory? Yes
4- Could you send the sample for testing? Yes
5- Could you offer door to door service? Yes Contact us if you need more details on Fuel Dispenser Equipment. We are ready to answer your questions on packaging, logistics, certification or any Other aspects about Bennett Flowmeter、Fuel Dispenser Flow Meter. If these products fail to match your need, please contact us and we would like to provide relevant information.
1. The plunger seal that is positioned with the cup toward the fluid, this provides longer life and eliminates "blow-by" for superior overall performance and accuracy
2. Using bushing to replace bearings provide longer life time and high precision
3. The meter uses a direct drive to the pulser which is equipped with an adjustable timeout feature for fuel theft prevention
4. 100% Factory tested to ensure absolute "leak proof" quality.
Details | Technical Specifications | |
Working Pressure | 0.12-0.35Mpa |
Temperature | -25° C to 55° C |
Flow Rate | 5-80L/m |
Measurement Accuracy | ±0.2% or better |
Repeat Variation | ≤0.1% |
Discharge rate per revolution | 0.5L |
Rotary Direction of Axial | Clockwise |
Working Life | ≥10000000L |
Dimension | 224mmx198mmx197mm |
Net Weight | About 5KG |
Company Information FAQ 1- Could you develop our own design? Yes2- Are you Factory ? Yes
3- Can we visit your factory? Yes
4- Could you send the sample for testing? Yes
5- Could you offer door to door service? Yes Contact us if you need more details on Fuel Dispenser Equipment. We are ready to answer your questions on packaging, logistics, certification or any Other aspects about Bennett Flowmeter、Fuel Dispenser Flow Meter. If these products fail to match your need, please contact us and we would like to provide relevant information.
