Roof Ridge Cap Tile Parts Roll Forming Machine
Home > Products > Parts Of Filling Station > Roof Ridge Cap Tile Parts Roll Forming Machine

Roof Ridge Cap Tile Parts Roll Forming Machine


  • Roof Ridge Cap Tile Parts Roll Forming Machine
  • Roof Ridge Cap Tile Parts Roll Forming Machine
  • Roof Ridge Cap Tile Parts Roll Forming Machine
  • Roof Ridge Cap Tile Parts Roll Forming Machine
  • Roof Ridge Cap Tile Parts Roll Forming Machine

Roof Ridge Cap Tile Parts Roll Forming Machine

    Payment Type: L/C,T/T,D/P,Western Union
    Terms of Trade: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 45 Days
    Packaging: One 20GP
    Productivity: 8-10m/min
    Brand: Zhongtuo
    Transportation: Ocean
    Place of Origin: Hebei
    Supply Ability: 30sets/month
    Certificate: CE/ISO9001

Basic Info

Model No.: Zt-003-49

Product Description

Roof Ridge Cap Tile Parts


Roll Forming Machine

Steel Sheet Roof Ridge Roll Forming Machine Introduction

Roof Ridge Cap Tile Parts Roll Forming Machine is the special high speed roll forming machine for steel sheet cold-form industries.It can continuous form the steel sheet according to

customer` s requirement, automatically cut to length.This equipment has many advantages, just like high forming speed,low noise,stable transmission,easy operation,good look and so on.

steel sheet roof ridge roll forming machine

Working flow of the machine:

ridge cap roll formine machine


Uncoiler System

Usage: It is used to support the steel coil and uncoil it in a turnable way.

Passive uncoil pulled by roll forming system

Loading capacity: 5T

Uncoiling width: 1000mm

Inner diameter: 450-550mm


ridge cap roll forming machine

Main machine forming system

1. Entry Beach

Usage: Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. It is set in the beginning

of the main machine with left-right guiding. It can help the operator to make the sheet in the right direction, left side and right side can be adjusted separately by manual screw structure.

2. Main Roll Forming System

Length of the main part: about 6200х1100х1500

Weight of main part: 3.2 tons

Voltage: 380V/50HZ 3Phase

Roller fixer: middle plate

Frame: 350 H steel welded

Drive mode: chain

Material of rollers:45# steel, surface hard chromium plating.

Material of shafts: 45# steel

Diameter of shafts: φ60mm

Number of rollers: 11 rollers

Main power: 3kw

ridge cap roll forming machine


3. Step-formed mechanism

Feature: it is used to make the step , the glazed tile's final formed

Material of mold: Cr12 quenched

4. Shearing Mechanism

Feature: Ensure stability, precision and cutting speed

Function: Automatic cutting controlled by PLC

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12 quenched

Power supply: hydraulic power

Components: It contains one set of blade, one hydraulic tank and one cutter machine.

5. Hydraulic Station

It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job.

Power: 5.5kw

Hydraulic oil: 46#

Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, and four hydraulic pipes. and two sets of electromagnetism valves.


ridge cap roll forming machine

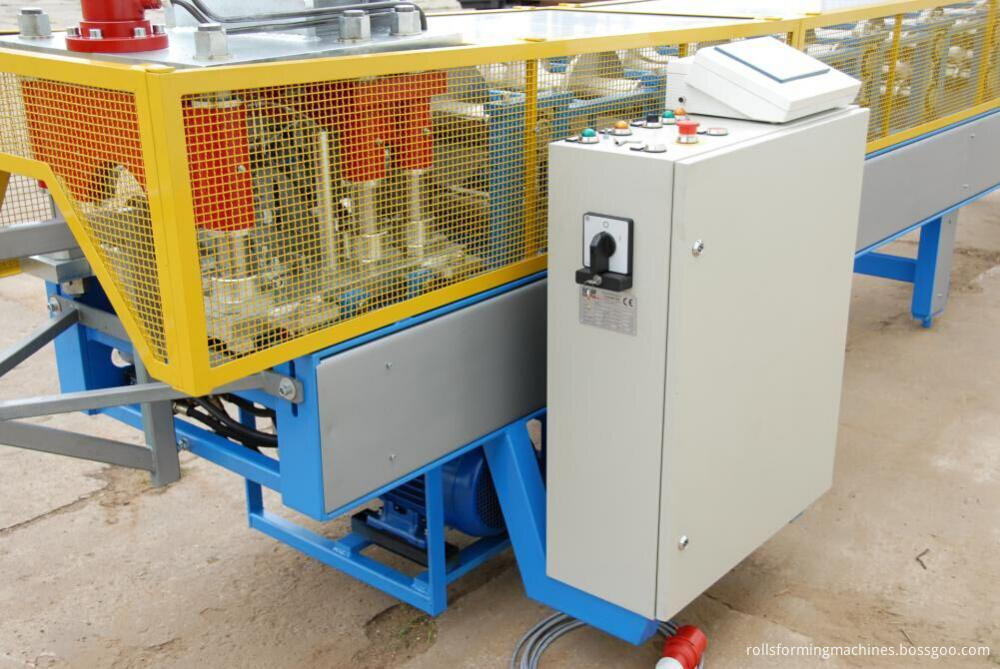

6. Electric Control System

Feature:

1.Adopted PLC , frequency converter , Delta touch screen from Taiwan to ensure high speed with stability, precision and lifetime.

2.Other electric element are Panasonic

ridge cap roll forming machine

7. Counter

One counter gauges length, pulses, and decides length.

Omron encoder for length measurement

ridge roll forming machine

8. Products receiving tables

It adopts welded steel and supported roller to transmit the products.

9. Spare part:

1. Easy damaged parts: conk 2 pcs, fuse-link 4 pcs

2. Rubber mats 1 pcs;

3. Bolt spanner 1 pcs

Price

FOB Tianjin 20000 USD

Terms

30% T/T in advance and balance, 70% after inspection confirmation

Warranty

1. One year totally free support, and we will provide the

technical support for the whole life.

2. Need one technician

3. Training time: one week (contains

the time of installation and adjustment)
