1" diesel nozzle fuel dispenser automatic nozzle for petrol station
1" diesel nozzle fuel dispenser automatic nozzle for petrol station
| Min. Order: | 1 Piece/Pieces |
|---|
| Packaging: | Each TDW 7H fuel dispenser nozzle with box, 20pcs in a carton. |
|---|---|
| Supply Ability: | 10000 Piece/Pieces per Year |
| Port: | shanghai |
Product Description
1" diesel Nozzle Fuel Dispenser Automatic Nozzle for petrol station Product Description Tested before shipping One year warranty and guarantee Certificate with UL,ATEX,ISO,etc Hot selling in American Factory direct selling
Order Select
Detail Information
Related Product
You may like our Other nozzles,click!!! Company Information
Certifications
FAQ 1- Could you develop our own design? Yes 2- The Fuel Nozzle including swivel? Yes
3- Can we visit your factory? Yes
4- Could you send the sample for testing? Yes
5- Could you offer door to door service? Yes Contact
Contact us if you need more details on Diesel Nozzle. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Fuel Dispenser Nozzle、Fuel Dispenser. If these products fail to match your need, please contact us and we would like to provide relevant information.

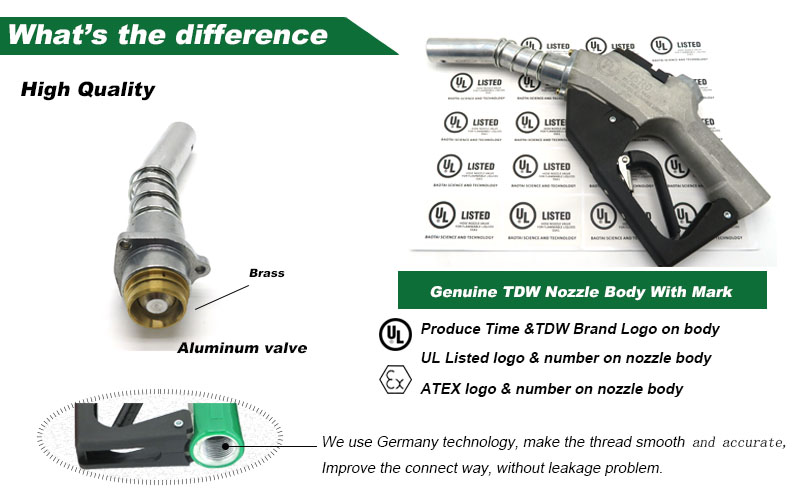

| Material | |
| Body | Aluminum |
| Lever and lever guard | Duratuff |
| Main stem | Extra hard stainless steel |
| Seals | Buna-N, Viton |
| Technical Specifical | |
| Working Pressure | 0.2 Mpa |
| Auto Shut-off sensibility | 0.1 second |
| Inlet Size | 1" |
| Thread | NPT/BSP |

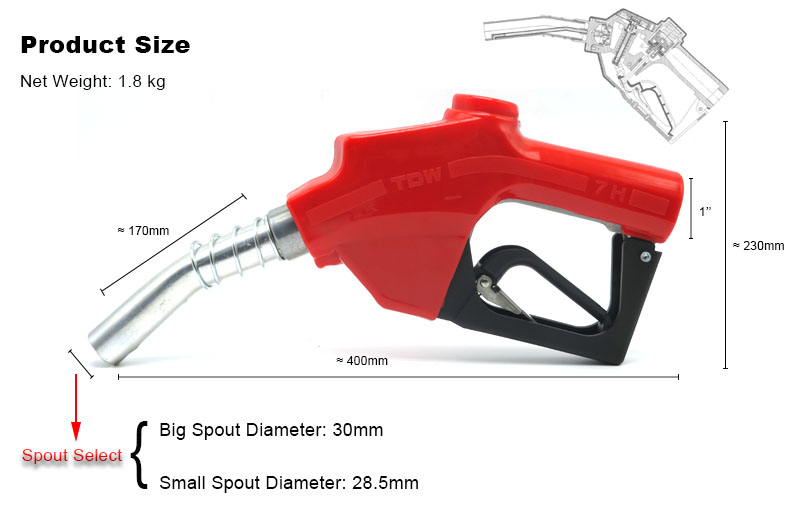

| Spout Outlet Diameter | 30 mm, 28.7 mm |
| Flow Rate | 20 - 120 L/m |
| Net Weight | 1.55 KG |
| Order Specifications | ||
| Item No. | Inlet Thread | Spout O.D. |
| TDW-7H01 | 1" NP | 28.7 mm |
| TDW-7H02 | 1" NPT | 30 mm |
| TDW-7H03 | 1" BSP | 28.7 mm |
| TDW-7H04 | 1" BSP | 30 mm |
| Color Options | |
| Red, Green, Blue, Yellow, Black |
| Package Data | |
| Size | Gross Weight |
| 1pcs = 43*17*6.5 cm (box) | 1.7 kg |
| 20pcs = 0.11 club (carton) | 34.3 kg |
Related Product You may like our Other nozzles,click!!! Company Information Certifications FAQ 1- Could you develop our own design? Yes 2- The Fuel Nozzle including swivel? Yes3- Can we visit your factory? Yes
4- Could you send the sample for testing? Yes
5- Could you offer door to door service? Yes Contact
| Contacts | Dustin Chen |
| ch739373416 | |
| Mob/WhatsApp | +86 17805808064 |
Contact us if you need more details on Diesel Nozzle. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Fuel Dispenser Nozzle、Fuel Dispenser. If these products fail to match your need, please contact us and we would like to provide relevant information. Product Categories : Others > TDW Nozzle
