Fuel Oil Station Dispensing Pump Automatic Filling Nozzle

Fuel Dispenser Pump Automatic Nozzle with TDW 11A  Product Description TDW-11A automatic nozzles are designed with today's consumers in mind. Small, trim, light weight, easy and convenient to use, It is a rugged performer that offers long life and reliable service. "Accu-stop " flow control-allows your customers to top off their tank to the exact amount they want and easy to stop gasoline flow precisely.   Features and Benefits:
Ø Low profile aluminum body-light weight, easier to handle, provides an attractive, image enhancing appearance.
Ø Full hand insulator-protects both Nozzle and vehicle, and insulates user's hands.
Ø Hold-open rack is available for full service application-the one hand control means easy setting to flow rate for customer convenience.
Ø Easily replaced spout-simply remove the spout retaining screw. Replacement provides and entirely new outlet check valve. Kits are available from TDW.
Ø Suitable for diesel, kerosene, gasoline and gasoline with ethanol blends.
Ø 100% Factory Tested.

Technical Specifical
Working Pressure	0.2 Mpa
Auto Shut-off sensibility	0.1 second
Thread	NPT/BSP

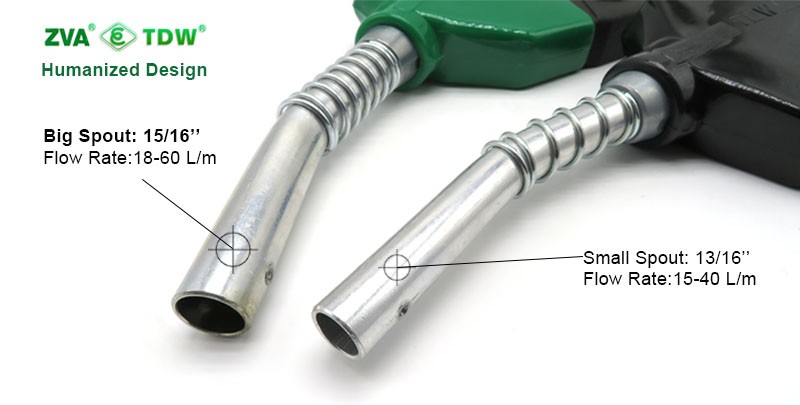

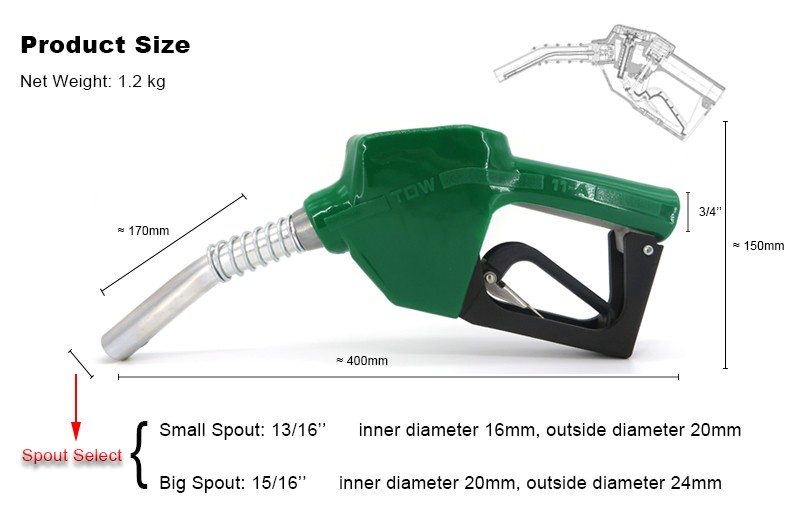

Spout Outlet Diameter	15/16", 13/16"  (20mm or 16mm)
Inlet Size	3/4"
Flow Rate	18-60 L/m(15/16"), 15-45 L/m(13/16")
Net Weight	1.15 KG

Order Select

Item No.	Inlet Thread	Spout O.D.
TDW-11A01	3/4" NPT	13/16"
TDW-11A02	3/4" NPT	15/16"
TDW-11A03	3/4" BSP	13/16"
TDW-11A04	3/4" BSP	15/16"

TDW 11A Details Package  You may like our Other automatic nozzles. Click! Factory Introduce FAQ&Contact 1- Could you develop our own design?                      Yes
2- Can we visit your factory?                                          Yes
3- Could you send the sample for testing?                Yes
4- Could you offer door to door service?                     Yes

Contacts	Eric Wu
Skype	guimanwu
QQ / WeChat	362356443
Tel	+86 0577 85881558
Fax	+86 0577 85881559
Mob / What's App	+86 18657793785
Facebook	China BaoTai Science And Technology Co.,Ltd



Contact us if you need more details on Fuel Filling Nozzle. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Oil Dispensing Nozzle、Fuel Nozzle. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : Others > TDW Nozzle
