model TDW 11A Fuel Nozzle For Fuel Dispenser
model TDW 11A Fuel Nozzle For Fuel Dispenser
| Min. Order: | 1 Piece/Pieces |
|---|
| Packaging: | Each UL Approved OPW Oil Nozzle For Fuel Pump in a plastic bag, then in a color box, 10pcs in a Carton |
|---|---|
| Supply Ability: | 30000 Piece/Pieces per Month |
| Port: | Ningbo or Shanghai |
Product Description

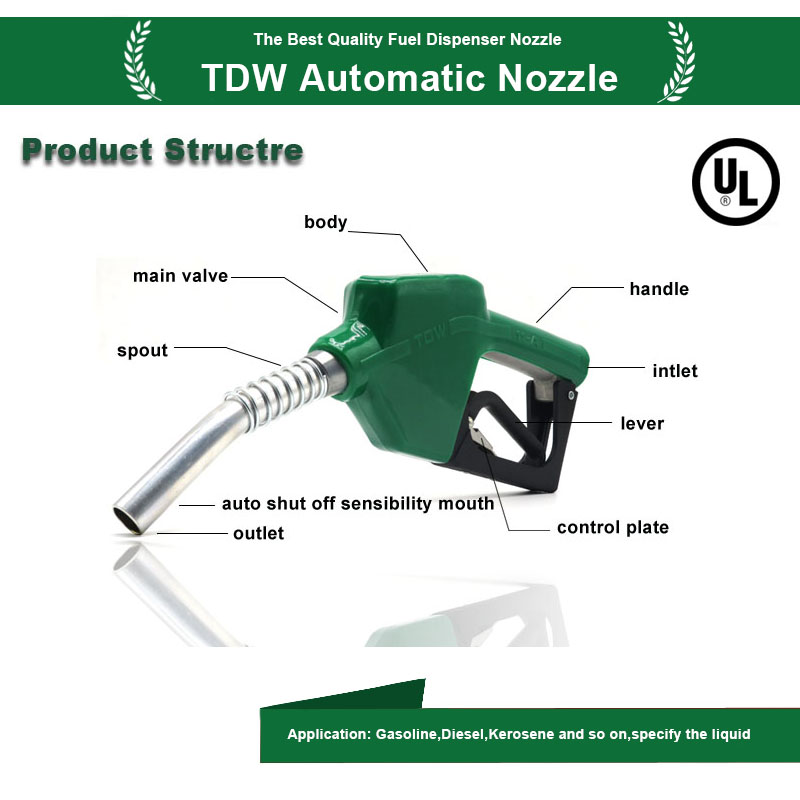

TDW 11A Fuel Nozzle For Fuel Dispenser Product Overviews TDW-11A automatic nozzles are designed with today's consumers in mind. Small, trim, light weight, easy and convenient to use, It is a rugged performer that offers long life and reliable service. "Accu-stop " flow control-allows your customers to top off their tank to the exact amount they want and easy to stop gasoline flow precisely. Features and Benefits:
Ø Low profile aluminum body-light weight, easier to handle, provides an attractive, image enhancing appearance.
Ø Full hand insulator-protects both Nozzle and vehicle, and insulates user's hands.
Ø Hold-open rack is available for full service application-the one hand control means easy setting to flow rate for customer convenience.
Ø Easily replaced spout-simply remove the spout retaining screw. Replacement provides and entirely new outlet check valve. Kits are available from TDW.
Ø Suitable for diesel, kerosene, gasoline and gasoline with ethanol blends.
Ø 100% Factory Tested.
Order Select
TDW Nozzle details
Company Information

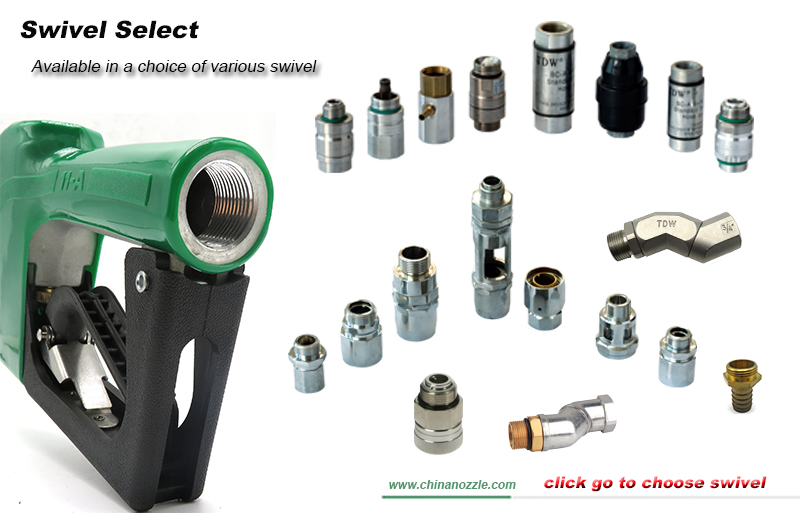

FAQ & Contact 1- Could you develop our own design? Yes 2- The fuel nozzle including swivel? Yes
3- Can we visit your factory? Yes
4- Could you send the sample for testing? Yes
5- Could you offer door to door service? Yes
Contact us if you need more details on Fuel Dispenser Nozzle. We are ready to answer your questions on packaging, logistics, certification or any Other aspects about Fuel Nozzle、Ul Approved. If these products fail to match your need, please contact us and we would like to provide relevant information.
Ø Low profile aluminum body-light weight, easier to handle, provides an attractive, image enhancing appearance.
Ø Full hand insulator-protects both Nozzle and vehicle, and insulates user's hands.
Ø Hold-open rack is available for full service application-the one hand control means easy setting to flow rate for customer convenience.
Ø Easily replaced spout-simply remove the spout retaining screw. Replacement provides and entirely new outlet check valve. Kits are available from TDW.
Ø Suitable for diesel, kerosene, gasoline and gasoline with ethanol blends.
Ø 100% Factory Tested.
| Technical Specifical | |
| Working Pressure | 0.2 Mpa |
| Auto Shut-off sensibility | 0.1 second |
| Thread | NPT/BSP |
| Spout Outlet Diameter | 15/16", 13/16" (20mm or 16mm) |
| Inlet Size | 3/4" |
| Flow Rate | 18-60 L/m(15/16"), 15-40 L/m(13/16") |
| Net Weight | 1.15 KG |
| Item No. | Inlet Thread | Spout O.D. |
| TDW-11A01 | 3/4" NPT | 13/16" |
| TDW-11A02 | 3/4" NPT | 15/16" |
| TDW-11A03 | 3/4" BSP | 13/16" |
| TDW-11A04 | 3/4" BSP | 15/16" |
Company Information FAQ & Contact 1- Could you develop our own design? Yes 2- The fuel nozzle including swivel? Yes3- Can we visit your factory? Yes
4- Could you send the sample for testing? Yes
5- Could you offer door to door service? Yes
| Contact | Joe Xiong |
| tel. | 86-577-55872770 |
| mobile | 86-13634295776 |
| 30237988 |
