TDW Automatic Fuel Filling Nozzle 3/4" For Fuel Dispenser Pump in Petrol Station
TDW Automatic Fuel Filling Nozzle 3/4" For Fuel Dispenser Pump in Petrol Station
| Unit Price: | 8~14 USD |
|---|---|
| Min. Order: | 10 Piece/Pieces |
| Packaging: | Each automatic nozzle with plastic bag, then in a box, 20pcs in a carton. |
|---|---|
| Supply Ability: | 20000 Piece/Pieces per Month |
| Port: | ShangHai or NingBo |
Product Description
TDW Automatic Fuel Filling Nozzle 11A For Fuel Dispenser Pump Product Description 11A automatic nozzles are designed with today's consumers in mind. Small, trim, light weight, easy and convenient to use, It is a rugged performer that offers long life and reliable service. "Accu-stop " flow control-allows your customers to top off their tank to the exact amount they want and easy to stop gasoline flow precisely.
Features and Benefits:
Ø Low profile aluminum body-light weight, easier to handle, provides an attractive, image enhancing appearance.
Ø Full hand insulator-protects both nozzle and vehicle, and insulates user's hands.
Ø Hold-open rack is available for full service application-the one hand control means easy setting to flow rate for customer convenience.
Ø Easily replaced spout-simply remove the spout retaining screw. Replacement provides and entirely new outlet check valve. Kits are available from TDW.
Ø Suitable for diesel, kerosene, gasoline and gasoline with ethanol blends.
Ø 100% Factory Tested.
Order Select
Packaging & Shipping

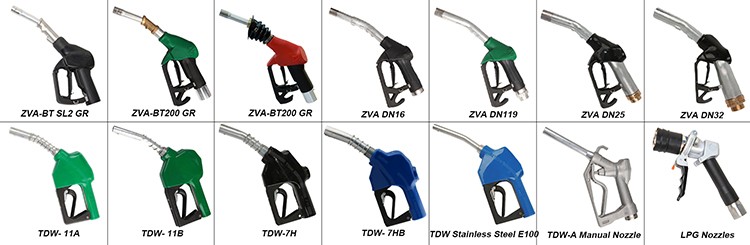

You may like our Other automatic nozzles. (Click!!!)
Company Information
FAQ & Contact 1- Could you develop our own design? Yes
2- The Fuel Nozzle including swivel? Yes
3- Can we visit your factory? Yes
4- Could you send the sample for testing? Yes
5- Could you offer door to door service? Yes
Contact us if you need more details on Fuel Dispenser. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Gas Station Nozzle、Diesel Nozzle. If these products fail to match your need, please contact us and we would like to provide relevant information.
Features and Benefits:
Ø Low profile aluminum body-light weight, easier to handle, provides an attractive, image enhancing appearance.
Ø Full hand insulator-protects both nozzle and vehicle, and insulates user's hands.
Ø Hold-open rack is available for full service application-the one hand control means easy setting to flow rate for customer convenience.
Ø Easily replaced spout-simply remove the spout retaining screw. Replacement provides and entirely new outlet check valve. Kits are available from TDW.
Ø Suitable for diesel, kerosene, gasoline and gasoline with ethanol blends.
Ø 100% Factory Tested.
| Material | |
| Body | Aluminum |
| Lever and lever guard | Duratuff |
| Main stem | Extra hard stainless steel |
| Seals | Buna-N, Viton |
| Technical Specifical | |
| Working Pressure | 0.2 Mpa |
| Auto Shut-off sensibility | 0.1 second |
| Thread | NPT/BSPT |
| Spout Outlet Diameter | 15/16", 13/16" |
| Inlet Size | 3/4" |
| Flow Rate | 18-60 L/m(15/16"), 15-40 L/m(13/16") |
| Net Weight | 1.15 KG |
| Order Specifications | ||
| Item No. | Inlet Thread | Spout O.D. |
| TDW-11A01 | 3/4" NPT | 13/16" |
| TDW-11A02 | 3/4" NPT | 15/16" |
| TDW-11A03 | 3/4" BSPT | 13/16" |
| TDW-11A04 | 3/4" BSPT | 15/16" |
| Package Data | |
| Size | Weight |
| 1pcs = 43*17*6.5 cm (box) | 1.3 kg |
| 20pcs = 0.1 club (carton) | 26.3 kg |
| Color Options | |
| Red, Green, Blue, Yellow, Orange, Black |
You may like our Other automatic nozzles. (Click!!!) Company Information FAQ & Contact 1- Could you develop our own design? Yes2- The Fuel Nozzle including swivel? Yes
3- Can we visit your factory? Yes
4- Could you send the sample for testing? Yes
5- Could you offer door to door service? Yes
| Contacts | Eric Wu |
| Skype | guimanwu |
| QQ / WeChat | 362356443 |
| Tel | +86 0577 85881558 |
| Fax | +86 0577 85881559 |
| Mob / What's App | +86 18657793785 or +86 13676773689 |
| China BaoTai Science And Technology Co.,Ltd |
Contact us if you need more details on Fuel Dispenser. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Gas Station Nozzle、Diesel Nozzle. If these products fail to match your need, please contact us and we would like to provide relevant information. Product Categories : Others > TDW Nozzle
