TDW 11A Fuel Dispenser Pump Automatic Nozzle For Gas Station
Home > Products > Others > TDW Nozzle > TDW 11A Fuel Dispenser Pump Automatic Nozzle For Gas Station

TDW 11A Fuel Dispenser Pump Automatic Nozzle For Gas Station

    Min. Order: 1 Piece/Pieces
    Packaging: Each fuel nozzle with box, 20pcs in a carton.

Product Description

TDW 11A  Fuel Dispenser Pump Automatic Nozzle For Gas Station Product Description TDW 11A automatic nozzles are designed with today's consumers in mind. Small, trim, light weight, easy and convenient to use, It is a rugged performer that offers long life and reliable service. "Accu-stop " flow control-allows your customers to top off their tank to the exact amount they want and easy to stop gasoline flow precisely.

Features and Benefits:
Ø Low profile aluminum body-light weight, easier to handle, provides an attractive, image enhancing appearance.
Ø Full hand insulator-protects both Nozzle and vehicle, and insulates user's hands.
Ø Hold-open rack is available for full service application-the one hand control means easy setting to flow rate for customer convenience.
Ø Easily replaced spout-simply remove the spout retaining screw. Replacement provides and entirely new outlet check valve. Kits are available from TDW.
Ø Suitable for diesel, kerosene, gasoline and gasoline with ethanol blends.
Ø 100% Factory Tested.
Material
Body Aluminum
Lever and lever guard Duratuff
Main stem Extra hard stainless steel
Seals Buna-N, Viton

Technical Specifical
Working Pressure 0.2 Mpa
Auto Shut-off sensibility 0.1 second
Thread NPT/BSP

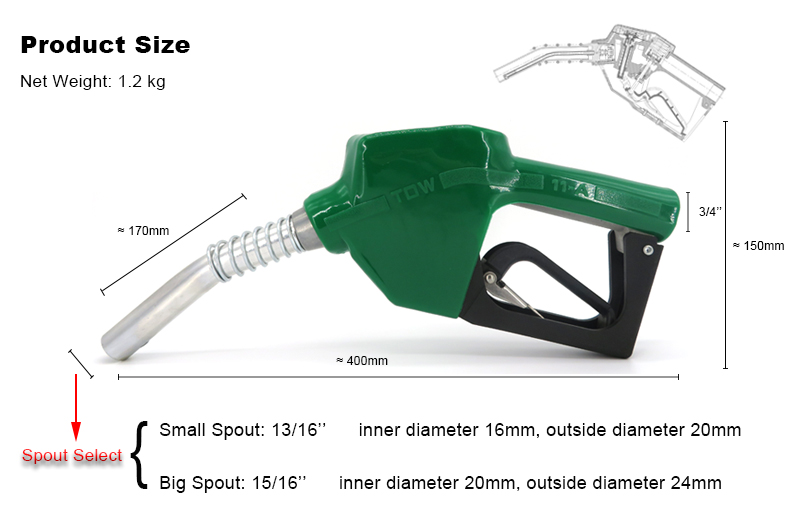

Spout Outlet Diameter 15/16", 13/16"  (20mm or 16mm)
Inlet Size 3/4"
Flow Rate 18-60 L/m(15/16"), 15-40 L/m(13/16")
Net Weight

1.15 KG

Order Select
Order Specifications
Item No. Inlet Thread Spout O.D.
TDW-11A01 3/4" NPT 13/16"
TDW-11A02 3/4" NPT 15/16"
TDW-11A03 3/4" BSP 13/16"
TDW-11A04 3/4" BSP 15/16"

Package Data
Size Weight
1pcs = 43*17*6.5 cm (box) 1.3 kg
20pcs = 0.1 club (carton) 26.3 kg

Color Options
Red, Green, Blue, Yellow, Orange, Black
Packaging & Shipping TDW 11A Fuel Dispenser Pump Automatic Nozzle For Gas StationTDW 11A Fuel Dispenser Pump Automatic Nozzle For Gas StationTDW 11A Fuel Dispenser Pump Automatic Nozzle For Gas StationTDW 11A Fuel Dispenser Pump Automatic Nozzle For Gas StationTDW 11A Fuel Dispenser Pump Automatic Nozzle For Gas Station    You may like our Other automatic nozzles. (Click!!!)
TDW 11A Fuel Dispenser Pump Automatic Nozzle For Gas StationTDW 11A Fuel Dispenser Pump Automatic Nozzle For Gas Station Company Information TDW 11A Fuel Dispenser Pump Automatic Nozzle For Gas StationTDW 11A Fuel Dispenser Pump Automatic Nozzle For Gas StationTDW 11A Fuel Dispenser Pump Automatic Nozzle For Gas Station FAQ & Contact 1- Could you develop our own design?                             Yes
2- The Fuel Nozzle including swivel?                                 Yes
3- Can we visit your factory?                                           Yes
4- Could you send the sample for testing?                       Yes
5- Could you offer door to door service?                           Yes
Contacts Eric Wu
Skype guimanwu
QQ / WeChat 362356443
Tel +86 0577 85881558
Fax +86 0577 85881559
Mob / What's App +86 18657793785
Facebook China BaoTai Science And Technology Co.,Ltd
TDW 11A Fuel Dispenser Pump Automatic Nozzle For Gas Station

Contact us if you need more details on Fuel Nozzle. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Automatic Nozzle、TDW Nozzle. If these products fail to match your need, please contact us and we would like to provide relevant information.
